Design considerations for friction stir welding joints

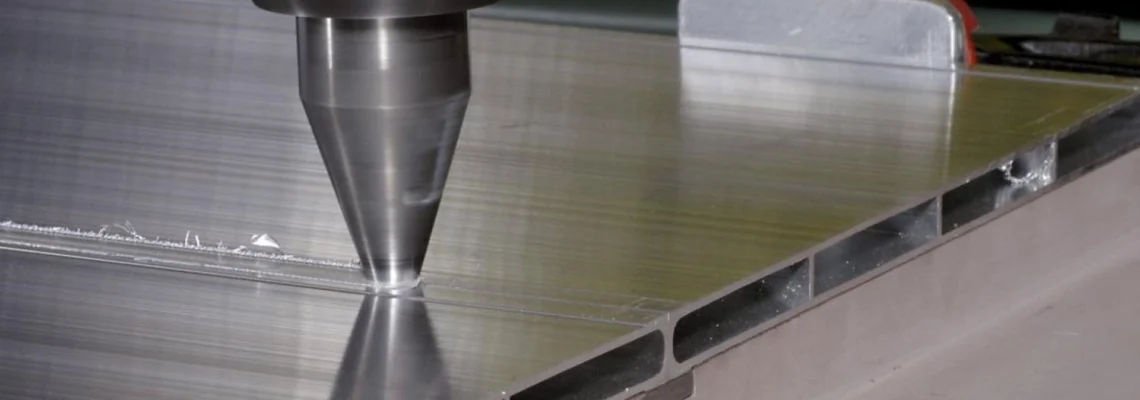

Friction stir welding (FSW) has revolutionized the joining of materials, particularly in industries where high-strength, lightweight connections are crucial. This innovative solid-state welding technique offers numerous advantages over traditional fusion welding methods, including reduced distortion, improved mechanical properties, and the ability to join dissimilar materials. As engineers and manufacturers continue to push the boundaries of material science, understanding the intricacies of FSW joint design becomes increasingly important for achieving optimal performance and reliability in welded structures.

Metallurgical principles of friction stir welding joints

The friction stir welding process relies on the complex interplay of heat generation, plastic deformation, and material flow to create high-quality joints. Unlike conventional welding techniques, FSW does not melt the base materials, instead utilizing frictional heat and mechanical stirring to plasticize and intermix the materials at the joint interface. This unique mechanism results in a distinctive microstructure that significantly influences the joint's properties.

At the heart of FSW's metallurgical principles is the concept of dynamic recrystallization. As the rotating tool generates heat and induces severe plastic deformation, the material in the weld zone undergoes rapid recrystallization, leading to the formation of fine, equiaxed grains. This grain refinement is a key factor in enhancing the mechanical properties of FSW joints, often resulting in strengths comparable to or even exceeding those of the base materials.

Another critical aspect of FSW metallurgy is the creation of a gradient microstructure across the weld zone. The varying degrees of heat input and deformation experienced by different regions of the joint lead to the formation of distinct zones, each with its own unique microstructural characteristics and properties. Understanding these zones and their interactions is essential for optimizing joint design and predicting overall performance.

Process parameters affecting FSW joint quality

The quality and performance of friction stir welded joints are highly dependent on a range of process parameters. Careful optimization of these parameters is crucial for achieving desired joint characteristics and minimizing defects. Let's explore some of the key parameters that significantly influence FSW joint quality.

Tool rotation speed and traverse rate optimization

The tool rotation speed and traverse rate are perhaps the most critical parameters in FSW. These factors directly affect the heat input and material flow during the welding process. Optimizing the balance between rotation speed and traverse rate is essential for achieving adequate heat generation and proper material mixing without overheating or creating defects.

Higher rotation speeds generally result in increased heat generation and more extensive material stirring. However, excessively high speeds can lead to overheating and potential defects such as voids or flash formation. Conversely, lower rotation speeds may not generate sufficient heat for proper plasticization, potentially resulting in incomplete bonding or cold welding defects.

The traverse rate, or welding speed, affects the heat input per unit length of the weld. Faster traverse rates reduce heat input, which can be beneficial for minimizing the heat-affected zone but may also lead to insufficient material flow. Slower rates increase heat input and promote better mixing but can result in excessive grain growth or overaging in heat-treatable alloys.

Axial force and plunge depth control

The axial force applied by the FSW tool and the plunge depth into the workpiece are crucial for ensuring proper contact and heat generation at the weld interface. Insufficient axial force or plunge depth can result in inadequate material consolidation and potential lack of penetration defects. On the other hand, excessive force or plunge depth may lead to tool wear, workpiece thinning, or surface defects.

Precise control of these parameters is especially important when welding materials with different thicknesses or properties. Adaptive control systems that can adjust the axial force and plunge depth in real-time based on feedback from the welding process are increasingly being employed to maintain consistent joint quality across varying conditions.

Tool tilt angle and shoulder diameter considerations

The tool tilt angle, typically ranging from 1° to 3°, plays a significant role in material flow and weld consolidation. A slight backward tilt of the tool helps to create a forging action at the trailing edge of the shoulder, improving weld quality and surface finish. However, the optimal tilt angle can vary depending on the material properties and joint configuration.

The shoulder diameter of the FSW tool influences the heat generation and the width of the processed zone. A larger shoulder diameter increases the contact area with the workpiece, resulting in greater heat input and a wider heat-affected zone. While this can be beneficial for some applications, it may also lead to excessive softening in heat-treatable alloys. Balancing the shoulder diameter with other process parameters is crucial for achieving the desired weld characteristics.

Workpiece material properties and their influence

The properties of the materials being joined have a significant impact on the FSW process and resulting joint quality. Factors such as thermal conductivity, strength, and melting point all play important roles in determining the optimal process parameters.

For example, materials with high thermal conductivity, like aluminum alloys, may require higher rotation speeds or slower traverse rates to generate sufficient heat for proper plasticization. Conversely, materials with lower thermal conductivity, such as titanium alloys, may require more careful control of heat input to avoid overheating and potential defects.

The strength and hardness of the workpiece materials also influence tool wear and the required axial force. Harder materials may necessitate the use of more robust tool materials and designs to withstand the higher stresses involved in the welding process.

FSW tool design for enhanced joint performance

The design of the friction stir welding tool is a critical factor in achieving high-quality joints and optimizing process efficiency. Tool geometry significantly influences material flow, heat generation, and weld microstructure. Let's examine some key aspects of FSW tool design and their impact on joint performance.

Pin geometry variations: threaded vs. unthreaded

The pin (or probe) is the primary component responsible for material stirring and mixing in FSW. Pin geometry can vary widely, with options including cylindrical, tapered, and threaded designs. Each geometry offers unique advantages and is suited to different materials and joint configurations.

Threaded pins are particularly effective in promoting vertical material flow, which is crucial for achieving full penetration in thicker workpieces. The threads act like an auger, drawing material down from the surface and pushing it upwards from the root of the weld. This enhanced material flow can lead to improved weld consolidation and reduced defect formation.

Unthreaded pins, such as smooth cylindrical or tapered designs, may be preferred for certain applications where minimizing tool wear is a priority or when welding softer materials. These simpler geometries can still achieve excellent joint quality when combined with appropriate process parameters.

Shoulder profile optimization: concave, flat, and scrolled

The shoulder of the FSW tool plays a crucial role in heat generation and material containment. The shoulder profile can significantly affect weld surface quality, heat input, and material flow patterns. Common shoulder designs include concave, flat, and scrolled profiles.

Concave shoulders are widely used due to their ability to contain plasticized material effectively and produce smooth weld surfaces. The concave shape helps to direct material flow inward towards the pin, promoting better mixing and consolidation.

Flat shoulders are simpler to manufacture and can be effective in certain applications, particularly when combined with a slight tool tilt angle. However, they may be more prone to material escape and flash formation compared to concave designs.

Scrolled shoulders feature spiral grooves or channels on the shoulder surface. These features enhance material flow and can improve weld quality by promoting better mixing and reducing the tendency for material to escape from the weld zone. Scrolled shoulders are particularly beneficial when welding at higher traverse rates or in materials with lower plasticity.

Advanced tool materials: PCBN, tungsten carbide, and MP159

The choice of tool material is critical for ensuring tool durability and maintaining consistent weld quality, especially when joining high-strength or high-temperature materials. Advanced tool materials have been developed to withstand the severe conditions encountered during FSW.

Polycrystalline cubic boron nitride (PCBN) tools offer exceptional wear resistance and thermal stability, making them suitable for welding high-strength steels and other challenging materials. While expensive, PCBN tools can maintain their geometry for extended periods, resulting in consistent weld quality and reduced downtime for tool changes.

Tungsten carbide tools provide a good balance of hardness, toughness, and cost-effectiveness. They are widely used for welding aluminum alloys and other softer materials. However, their performance may degrade at very high temperatures, limiting their applicability for certain high-strength materials.

MP159, a nickel-cobalt-based superalloy, has gained popularity as a tool material for FSW due to its excellent combination of strength, toughness, and thermal stability. MP159 tools can maintain their properties at elevated temperatures, making them suitable for welding a wide range of materials, including some steels and titanium alloys.

Microstructural evolution in FSW joints

Understanding the microstructural changes that occur during friction stir welding is essential for predicting and optimizing joint properties. The FSW process creates a complex, graded microstructure across the weld zone, with distinct regions exhibiting unique characteristics. Let's explore the key microstructural zones and their formation mechanisms.

Thermomechanically affected zone (TMAZ) characteristics

The thermomechanically affected zone (TMAZ) is a transitional region between the intensely deformed weld nugget and the heat-affected zone. This region experiences both elevated temperatures and plastic deformation, resulting in a highly distinctive microstructure.

In the TMAZ, grains are typically elongated and rotated, reflecting the material flow patterns induced by the FSW tool. The degree of grain deformation and recrystallization in this zone can vary depending on the specific location relative to the tool and the process parameters used.

The TMAZ often exhibits a gradient in microstructure and properties, with characteristics transitioning from those of the weld nugget to those of the heat-affected zone. This gradual transition can help to minimize stress concentrations and improve overall joint performance.

Heat affected zone (HAZ) formation and properties

The heat affected zone (HAZ) in FSW joints is a region that experiences thermal cycles without significant plastic deformation. The microstructural changes in the HAZ are primarily driven by temperature-induced phenomena such as recovery, recrystallization, and grain growth.

For heat-treatable alloys, the HAZ can be particularly critical, as the thermal exposure may lead to overaging and softening. This softening can result in a local reduction in strength, potentially creating a weak link in the joint. Careful control of heat input and post-weld heat treatment strategies may be necessary to mitigate these effects and optimize joint properties.

In non-heat-treatable alloys, the HAZ may exhibit less dramatic changes in properties, but phenomena such as grain growth and texture evolution can still influence the joint's mechanical behavior.

Nugget zone grain refinement mechanisms

The nugget zone, also known as the stir zone, is the region directly affected by the FSW tool's pin. This zone undergoes severe plastic deformation and experiences the highest temperatures during welding, resulting in a highly refined, recrystallized microstructure.

The primary mechanism for grain refinement in the nugget zone is dynamic recrystallization. The intense plastic deformation and elevated temperatures provide the driving force for the nucleation and growth of new, fine grains. This process can result in grain sizes that are often an order of magnitude smaller than those in the base material.

The extent of grain refinement and the resulting grain size in the nugget zone are influenced by various factors, including tool design, process parameters, and base material properties. Optimizing these factors can lead to enhanced mechanical properties, as the fine-grained structure typically exhibits improved strength and toughness compared to the base material.

In some cases, the nugget zone may also exhibit a characteristic "onion ring" structure, particularly in aluminum alloys. These rings are believed to be related to the material flow patterns and the periodic nature of the FSW process. While generally not detrimental to joint properties, understanding and controlling these features can provide insights into the material flow behavior during welding.

Mechanical properties and failure modes of FSW joints

The mechanical performance of friction stir welded joints is a critical consideration in design and application. FSW joints often exhibit unique mechanical behavior due to their distinctive microstructure and property gradients. Understanding these characteristics is essential for predicting joint performance and designing structures that can fully leverage the advantages of FSW technology.

Tensile strength and yield behavior analysis

Friction stir welded joints typically demonstrate excellent tensile properties, often achieving strengths close to or even exceeding those of the base materials. The fine-grained microstructure in the nugget zone contributes to increased yield strength through the Hall-Petch effect. However, the overall joint strength can be influenced by the properties of the various weld zones, particularly the HAZ in heat-treatable alloys.

The yield behavior of FSW joints may exhibit some unique characteristics. For instance, some joints may show a distinct double-yielding phenomenon, where the softer HAZ yields first, followed by the stronger nugget zone. This behavior can impact the overall deformation and failure characteristics of the joint.

It's important to note that the tensile properties of FSW joints can be highly anisotropic, with differences observed between the longitudinal and transverse directions relative to the weld line. This anisotropy should be considered when designing structures and specifying loading conditions for FSW components.

Fatigue performance and crack propagation patterns

Fatigue performance is a critical consideration for many FSW applications, particularly in industries such as aerospace and automotive where cyclic loading is common. FSW joints often exhibit superior fatigue resistance compared to fusion welded joints, primarily due to the absence of solidification defects and the fine-grained microstructure in the weld zone.

The fatigue crack initiation and propagation behavior in FSW joints can be complex due to the heterogeneous microstructure and property gradients across the weld. Cracks may initiate at the weld toe, in the HAZ, or at the interface between different microstructural zones, depending on the specific joint geometry and loading conditions.

In some cases, the refined grain structure in the nugget zone can lead to improved crack propagation resistance, as the numerous grain boundaries can impede crack growth. However, residual stresses and microstructural inhomogeneities can also influence crack paths and propagation rates, necessitating careful analysis and testing to predict long-term fatigue performance accurately.

Residual stress distribution and its effects

Residual stresses in FSW joints arise from the thermal cycles and plastic deformation experienced during the welding process. While generally lower than those in fusion welded joints, FSW residual stresses can still significantly impact joint performance, particularly with respect to fatigue and stress corrosion cracking resistance.

The residual stress distribution in FSW joints is typically characterized by tensile stresses in the weld nugget and compressive stresses in the surrounding regions. This distribution can be beneficial in some respects, as the compressive stresses in the HAZ may help to inhibit crack initiation and growth in this potentially weaker region.

However, the presence of residual stresses can also lead to distortion in welded components, particularly in thin sections or when joining dissimilar materials with different thermal expansion coefficients. Strategies such as optimized clamping techniques, thermal management during welding, and post-weld stress relief treatments may be employed to mitigate these effects and improve dimensional stability.

Advanced applications and future trends in FSW joint design

As friction stir welding technology continues to mature, new applications and innovative joint designs are emerging across various industries. Advanced materials, complex geometries, and hybrid joining techniques are pushing the boundaries of what's possible with

FSW technology. Let's explore some of these advanced applications and emerging trends in FSW joint design.

One of the most exciting developments in FSW is its application to joining dissimilar materials. Traditional fusion welding techniques often struggle with dissimilar material combinations due to differences in melting points, thermal expansion coefficients, and the formation of brittle intermetallic compounds. FSW, however, can overcome many of these challenges by operating below the melting point of the materials involved.

For instance, FSW has been successfully used to join aluminum to steel, a combination that is particularly valuable in the automotive industry for creating lightweight, high-strength structures. By carefully controlling the process parameters and tool design, it's possible to create strong, defect-free joints between these dissimilar materials. Similar success has been achieved with other material combinations, such as aluminum to copper or titanium to steel.

Another area of advancement is the application of FSW to increasingly complex joint geometries. While initial FSW applications focused primarily on simple butt and lap joints, researchers and industry professionals are now exploring more intricate configurations. T-joints, corner joints, and even multi-layer joints are being successfully produced using specialized FSW tools and techniques.

The aerospace industry, in particular, is driving innovation in complex FSW joint designs. For example, friction stir welded stringers are being integrated into aircraft fuselage panels, replacing traditional riveted constructions. This not only reduces weight but also improves fatigue performance and reduces manufacturing time and costs.

Hybrid joining techniques that combine FSW with other joining methods are also gaining traction. For instance, friction stir spot welding (FSSW) is being used in conjunction with adhesive bonding to create high-strength, leak-tight joints in automotive applications. The combination of localized FSW joints with continuous adhesive bonds can provide an optimal balance of strength, stiffness, and fatigue resistance.

Advancements in tool materials and designs are pushing the boundaries of what materials can be joined using FSW. High-temperature alloys, such as nickel-based superalloys and oxide dispersion strengthened (ODS) steels, which were once considered too challenging for FSW, are now being successfully welded using advanced tool materials like polycrystalline cubic boron nitride (PCBN) and tungsten-rhenium (W-Re) alloys.
